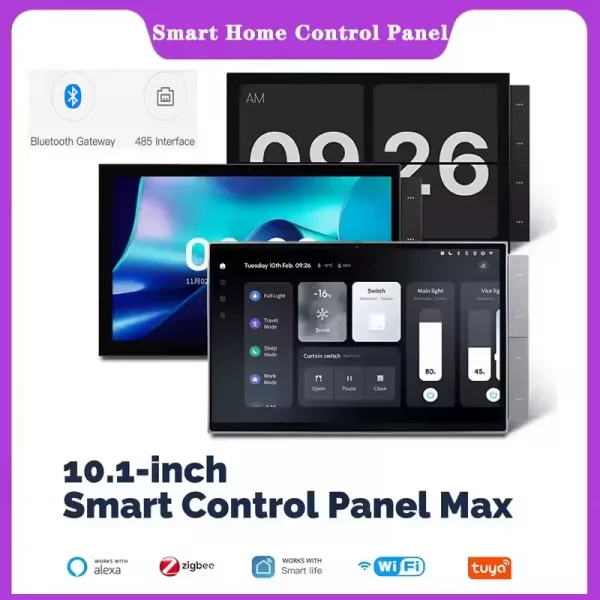

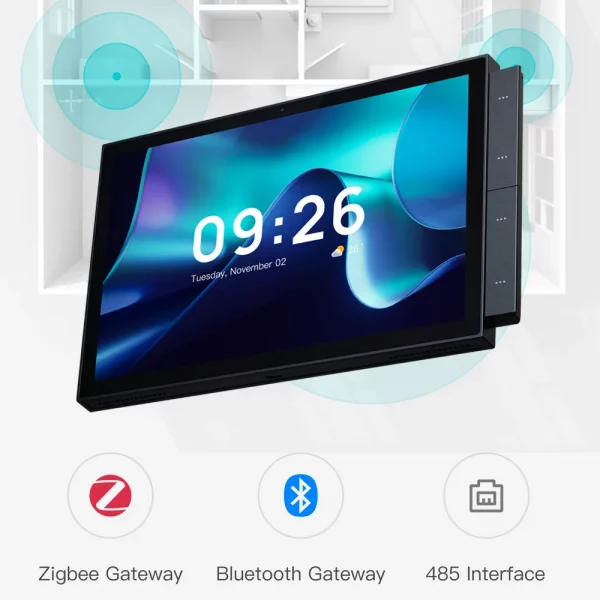

10.1" Tuya Smart Home Control Panel Multi-function Touch Screen Built-in Zigbee Gateway and Alexa Building Intercom Supports WiFi,BT,RS485,BLEmesh

Product Description

This product is suitable for indoor public spaces, and integrates a multi-functional central control that integrates control, interconnection, entertainment, and security. Compatible with a variety of product forms, it adopts standard 86 in-wall base design or desktop base, and is used with wall brackets to fix the central control host
panel and hang it on the wall. It mainly provides gateway function, scene panel, device video interconnection, music playback and other functions. Users can control and manage different types of smart devices under the account through physical buttons, screen, voice and other interactive methods.

Product Features

1. Zigbee & Bluetooth Gateway.
Zigbee and Bluetooth independent chips, integrate Zigbee and Bluetooth gateway
functions, support Bluetooth BLE & BLE mesh sub-devices, and have edge
capabilities for localized control.

2. Device control.
Fully compatible device access and diversified control forms are compatible with
almost all Tuya ecological devices.

3. Scene control.
Custom physical buttons, screen interaction, and voice interaction can trigger
Control Panel MAX scenes to meet different needs in life.

4. iShare technology .
In-depth customization of the interconnection center, support for IPC preview
monitoring, video and voice calls, and direct interconnection between central control
and central control, and central control and APP.

5. T- Control Technology.
Product comes with 4 custom buttons to support custom associated devices and
scenes ; it has also developed a shortcut panel for commonly used devices , with
multiple controls on one screen , allowing you to enjoy intelligence .

6. Rich interface.
A variety of base forms are supported, the standard base uses zero-fire wire
wiring, supports dual relays, RJ45 network port, RS485, etc.

7. Building intercom.
product has a built-in building intercom interface , which can be connected to the
video intercom system , elevator control , access control , and property information ;
( need to be combined with Tuya Community SaaS ) .

8.Supports displaying multiple languages.
English, Spanish, Chinese, French, Arabic, German, Portuguese, Portuguese (Brazil), Italian, Korean, Japanese, Hindi, Greek, Polish, Hungarian, Czech, Slovak, Hebrew, Russian

9.There are 3 bases available for this product.

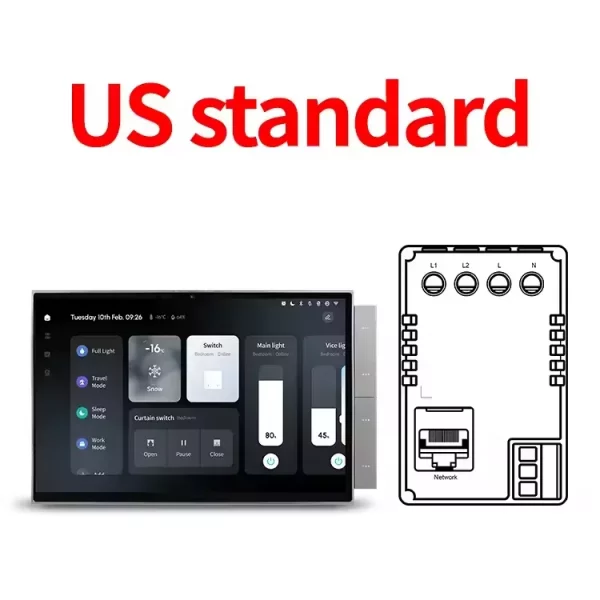

US standard bottom box(US model)

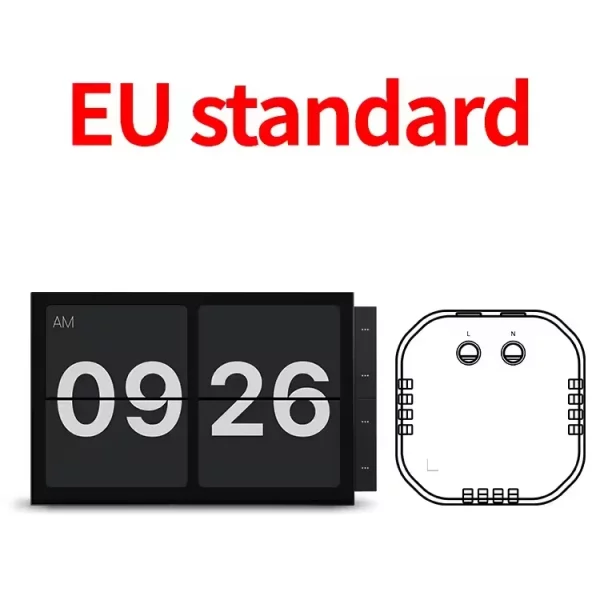

European standard bottom box(EU model)

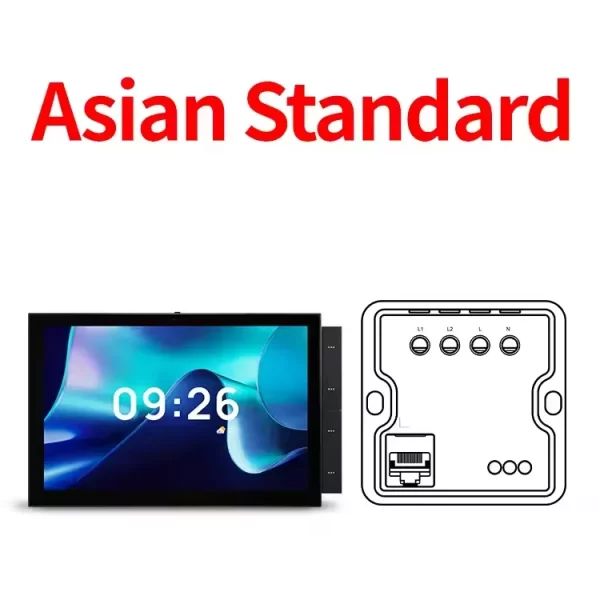

Asian standard bottom box.
Please select the corresponding specifications according to your needs.

Specifications

Enter:100-240VAC，50/60Hz
Wireless protocol:Wi-Fi, Bluetooth, Zigbee

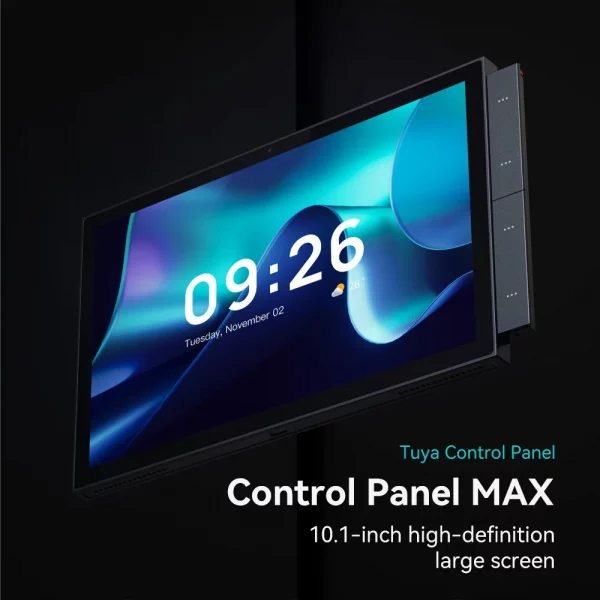

Display screen:1920×1200 FHD 10.1-inch touch screen
APP: Tuya,Smart Life
Operating temperature:0~40℃
Working humidity:5%-90%RH (non-condensing)
Size:259x161x13mm(without base),259x161x37mm(including base)

Packing List

Smart central control screen MAX x1
Wall bracket x 1
In-wall base box for strong electricity x 1( optional )
Weak current in-wall base box x1( optional )
Screw bag x 1
Reset pin x 1
Product manual x1

Installation preparation

1) This product is powered by the neutral wire, please arrange the neutral wire in
advance;
2) This product is connected to the network through Wi-Fi or Ethernet, please
arrange the WiFi network or Ethernet cable in advance;
3) If you want to use the relay, RS485, security network port of this product, please preset the relevant cables in advance;
4) To ensure electrical safety and wireless performance, please use a plastic
box that meets the JB/T 8593 standard or a depth of more than 40mm . 5) Please bring your own screwdriver, test pen, electrical tape and other tools, please do not operate with electricity.
